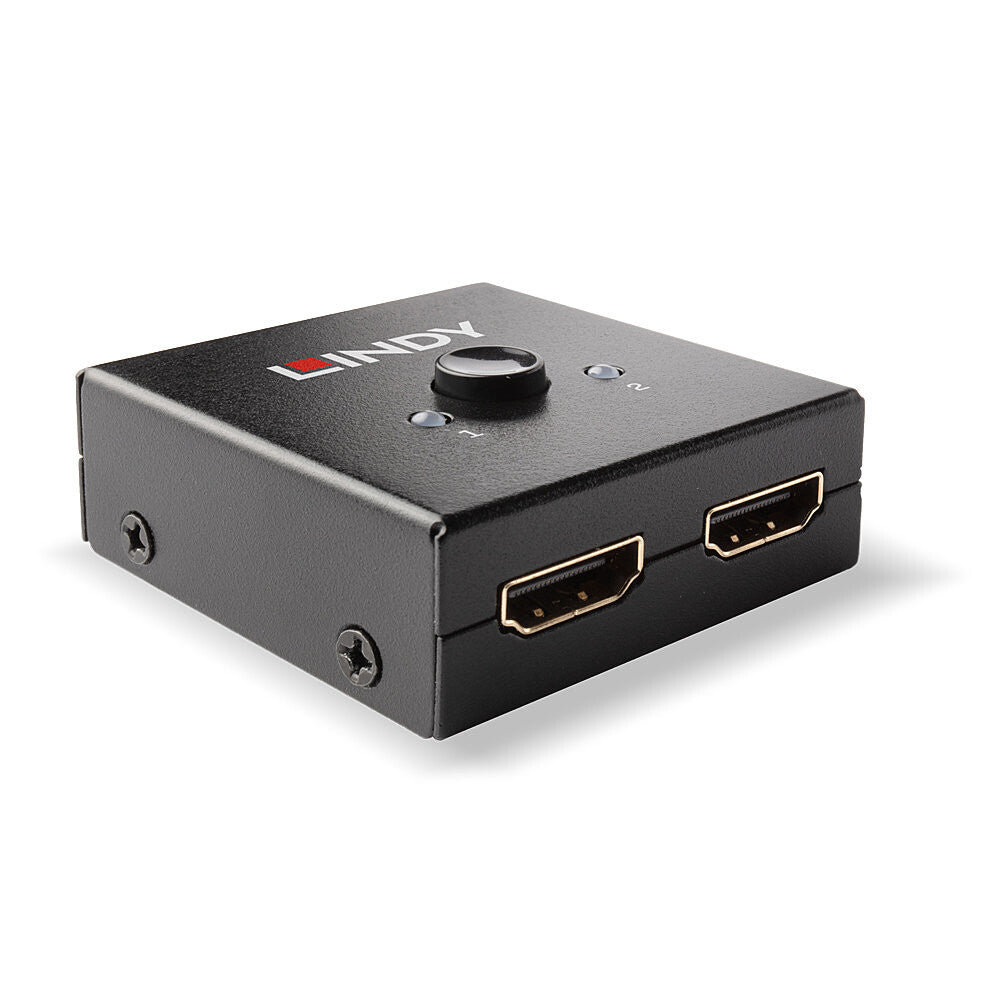

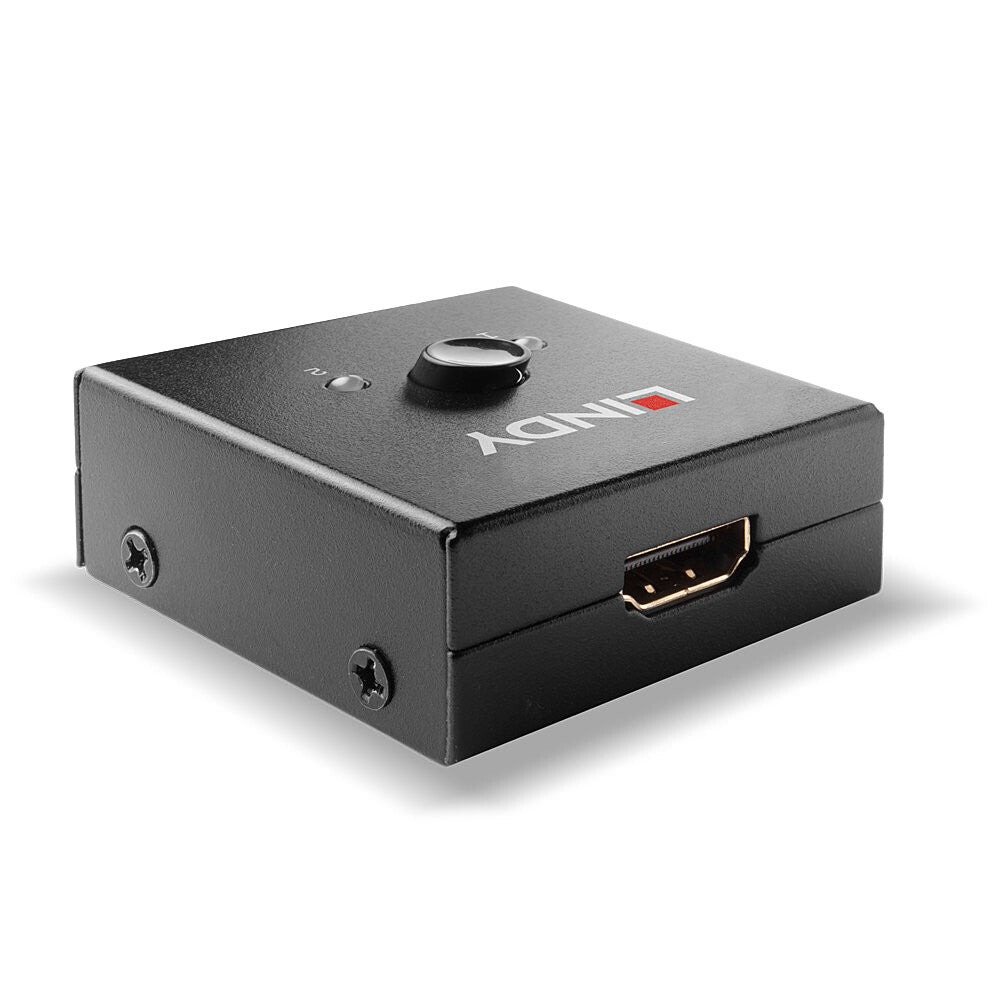

Lindy 2 Port HDMI 18G Bi-Directional Switch

Switches between two source devices to one output, or one source device to two outputs Supports resolutions up to 4K 3840x2160 @60Hz Supports HDMI audio pass-through No external power supply required, for easy and discreet installation 2 year warranty The Lindy HDMI 18G Bi-directional Switch allows the user to connect two 4K Ultra High Definition source devices such as Blu-Ray players or games consoles to a single 4K Ultra HD display or projector and easily switch between them at the push of a button. Alternatively, connect one 4K Ultra HD source can be connected to two 4K Ultra HD displays or projectors and switch between displays at the touch of a button.With support for resolutions up to 4K 3840x2160 @60Hz, this switch ensures a superior visual experience within residential, education or conferencing installations.The switch's minimalistic design, with no external power requirement, allows for a clean, discreet installation. Ports & interfaces Number of HDMI outputs 1 HDMI in 2 HDMI version 2.0 HDMI ports quantity 3 Video port type HDMI Features HD type 4K Ultra HD Bandwidth 18 Gbit/s HDCP Yes Maximum refresh rate 60 Hz LED indicators Yes Maximum resolution 3840 x 2160 pixels Consumer Electronics Control (CEC) support Yes Product colour Black Material Metal Certificates Certification CE, FCC, REACH, California Proposition 65 Weight & dimensions Width 49 mm Packaging data Package height 28 mm Package depth 80 mm Operational conditions Operating relative humidity (H-H) 10 - 85% Storage temperature (T-T) -10 - 80 °C Operating temperature (T-T) 0 - 70 °C Technical details Compliance certificates RoHS Logistics data Harmonized System (HS) code 85176990 manual pdf leaflet CE Declaration of Conformity
