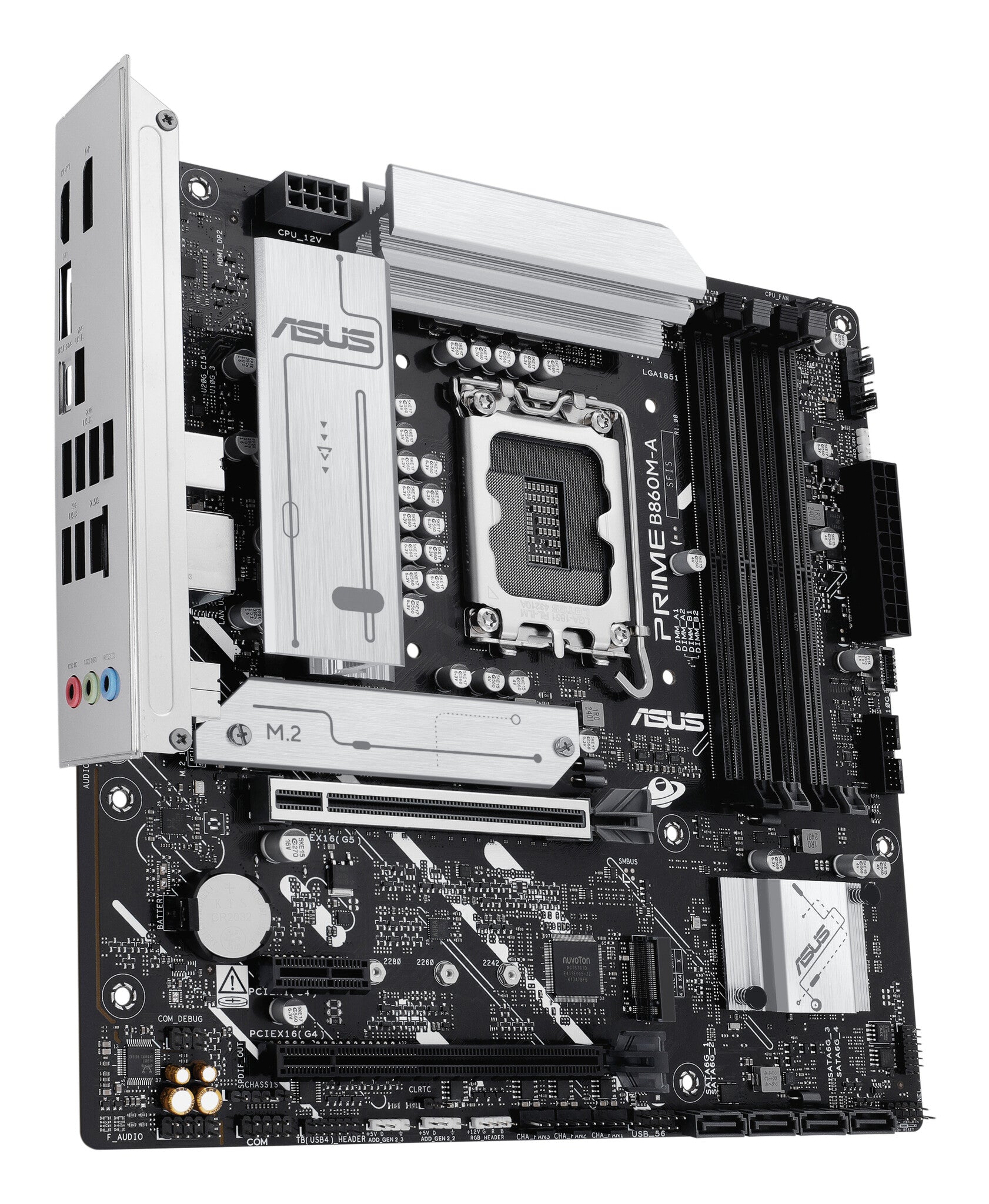

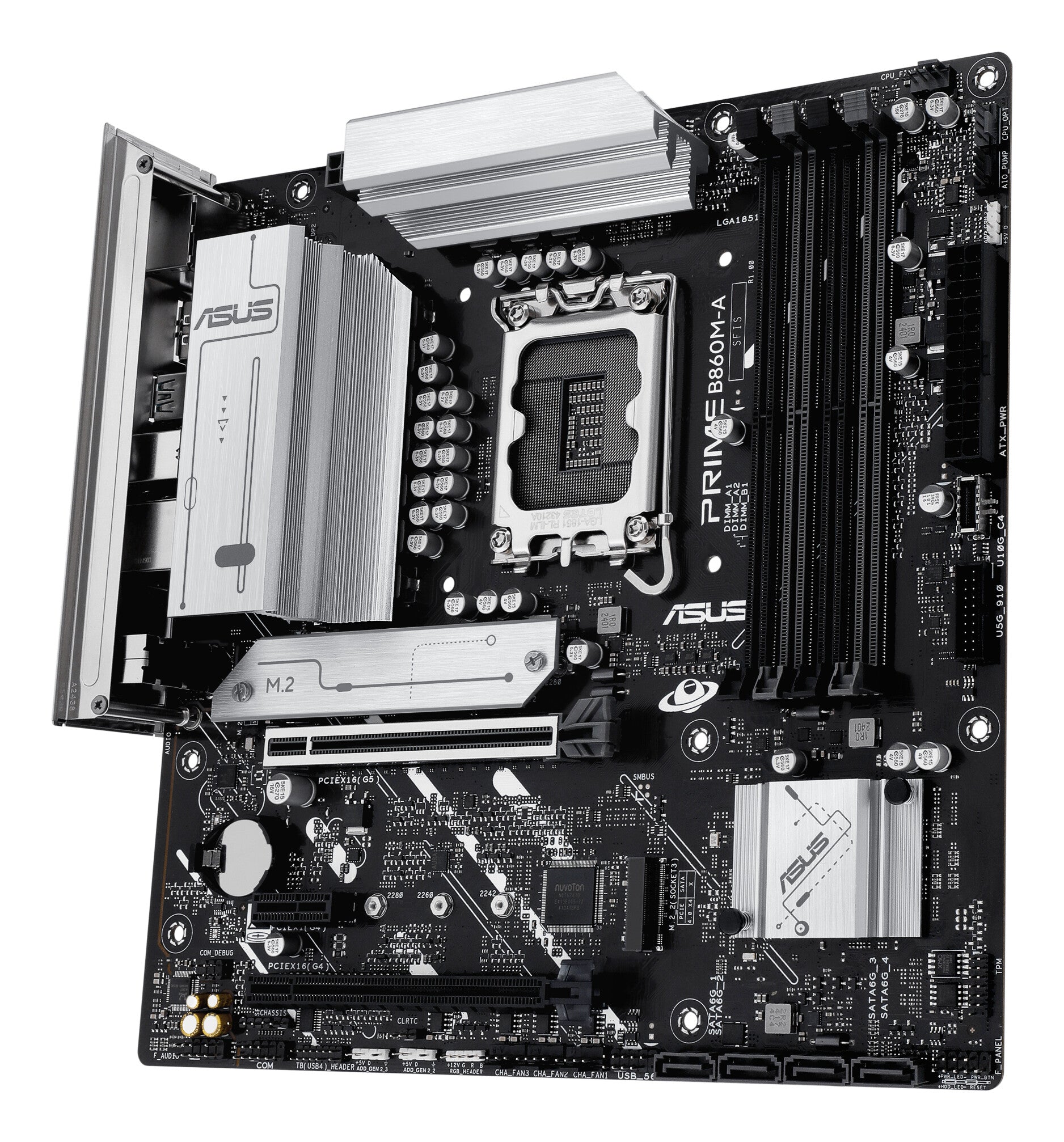

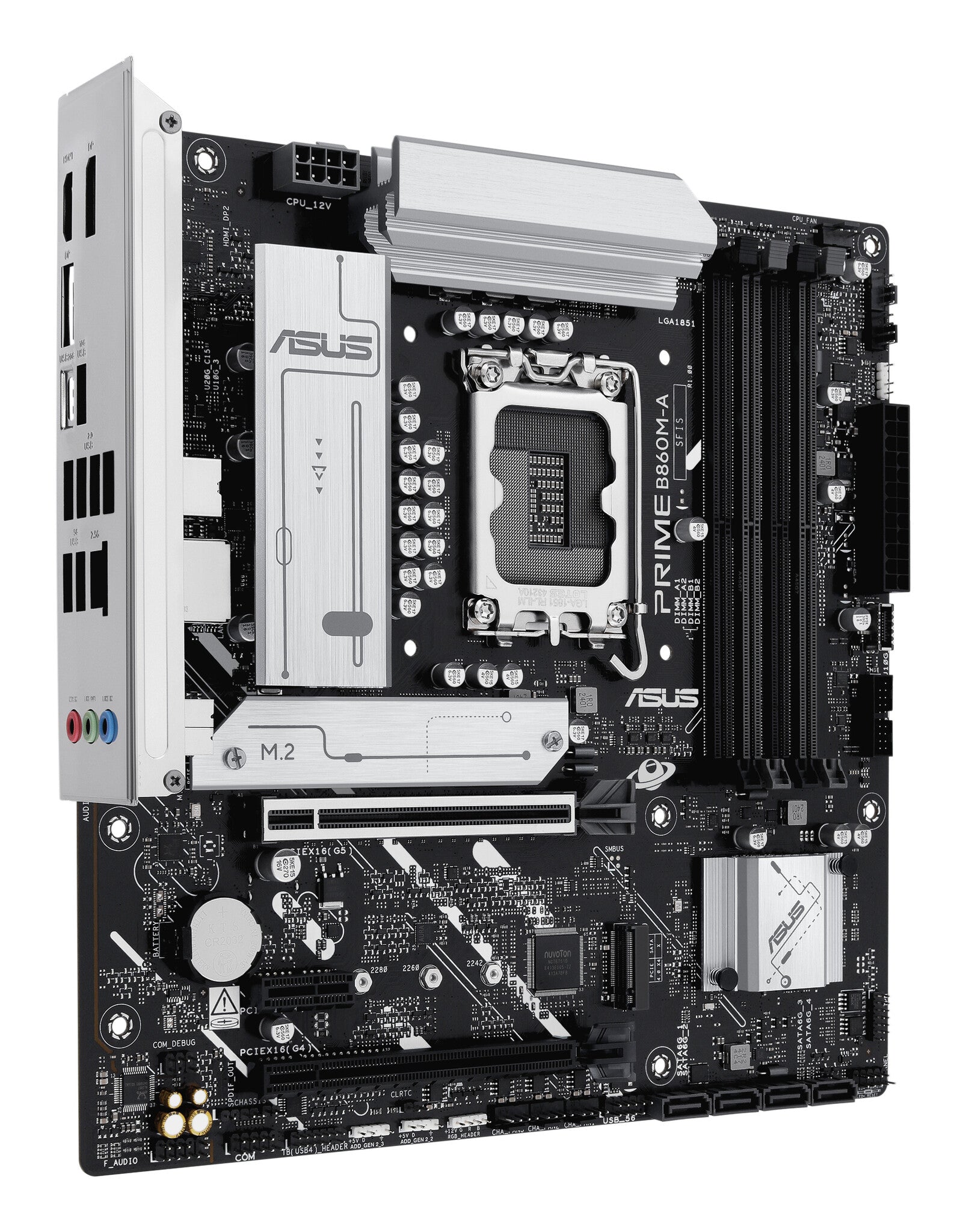

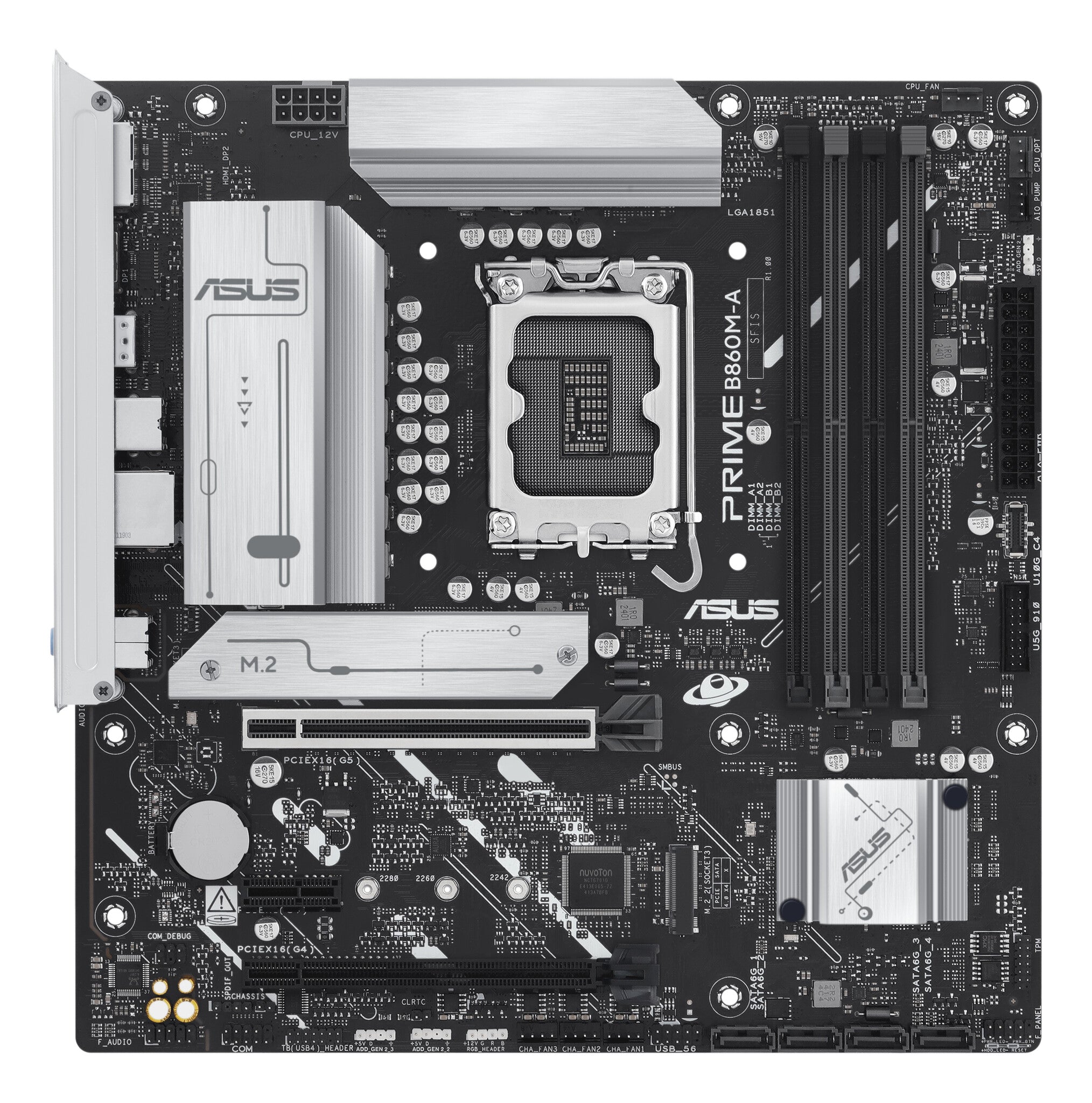

ASUS PRIME B860M-A-CSM Intel B860 LGA 1851 (Socket V1) micro ATX

Intel LGA 1851 (Socket V1) Intel Core Ultra (Series 2) PC micro ATX Intel B860 7.1 channels DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6 BIOS type: UEFI AMI 256 Mbit 2.5 Gigabit Ethernet PRIME B860M-A-CSMASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. Processor Processor manufacturer Intel Processor socket LGA 1851 (Socket V1) Compatible processor series Intel Core Ultra (Series 2) Memory Supported memory types DDR5-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel ECC сompatibility Non-ECC Supported memory clock speed (max) 8666 MHz Maximum internal memory 256 GB Unbuffered memory Yes Storage controllers Supported storage drive types HDD & SSD Supported storage drive interfaces M.2, SATA III Number of storage drives supported 6 Number of HDDs supported 4 RAID support Yes RAID levels 0, 1, 5, 10 Graphics Parallel processing technology support Not supported Internal I/O USB 2.0 connectors 1 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 USB 3.2 Gen 2 (3.1 Gen 2) connectors 1 Number of SATA III connectors 4 S/PDIF out connector Yes Front panel audio connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes Number of CPU fan connectors 1 Number of chassis fan connectors 3 Chassis intrusion connector Yes EPS power connector (8-pin) Yes 12V power connector Yes Thunderbolt headers 1 TPM connector Yes Number of COM connectors 1 Rear panel I/O ports USB 2.0 ports quantity 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 USB 3.2 Gen 2x2 Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 DisplayPorts quantity 2 Line-in Yes Microphone in Yes Network Ethernet LAN Yes Ethernet interface type 2.5 Gigabit Ethernet Wi-Fi No Top Wi-Fi standard Not available Features Component for PC Motherboard form factor micro ATX Motherboard chipset family Intel Motherboard chipset Intel B860 Audio output channels 7.1 channels Product colour Multicolour Windows operating systems supported Windows 10 x64, Windows 11 Expansion slots PCI Express x1 (Gen 4.x) slots 1 PCI Express x16 (Gen 4.x) slots 1 Number of M.2 (M) slots 2 BIOS BIOS type UEFI AMI BIOS memory size 256 Mbit Packaging data Package width 275 mm Package depth 275 mm Package height 67.5 mm Package weight 1.36 kg Weight & dimensions Width 244 mm Depth 244 mm Height 50 mm Other features Weight 815 g manual pdf
